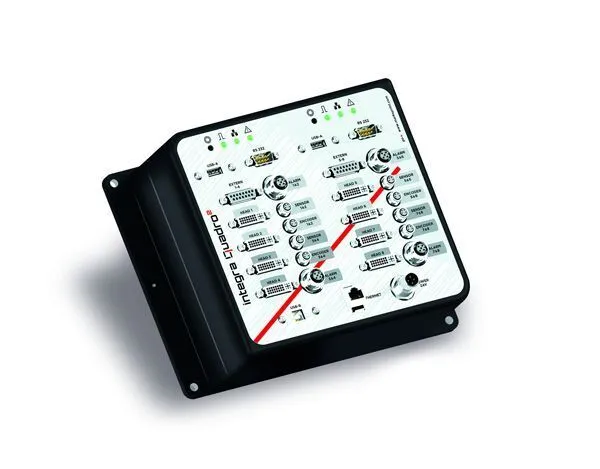

Markoprint Integra Quadro²
Have one to sell?
ConditionNew
New
Space-saving control unit for up to 8 inkjet printheads
The Markoprint Integra Quadro² is a versatile controller for operating up to 8 printheads, designed with mounting clips for easy integration into control cabinets or machinery. It is ideal for applications where data and tasks are sent from a local PC, network location, PLC, or other integrated device.
The unit controls a wide range of printheads and configurations, communicating with printheads without built-in intelligence. It supports four print technologies: HP, LX, MX, and XR, and can operate all 8 printheads simultaneously. This enables printing on multiple sides of a package, multiple production lines, or stacking printheads for larger print heights. Layouts and print jobs are easily managed using the included iDesign software.
TECHNICAL FEATURES
- Print with True Type fonts
- Alphanumeric text
- 1D & 2D barcodes
- Graphics & logos
- Compact design
- Print from the side or top down
- Control of up to 8 printheads
- DIN rail clips for easy installation
- Supports HP, LX, MX, XR technologies
- Mix print technologies; run up to 4 simultaneously
- USB, Ethernet, PLC, or web interface data transmission
- Encoders for belt speed and downtime tracking
- Flex holder for different product distances
- Mounting brackets for horizontal and vertical applications
- Parallel operation via standard keypad and function keys
- Networking via TCP/IP, USB, and EIA232
- Print on up to 4 production lines simultaneously
- Simultaneous marking of primary and secondary packaging
- New printhead with every cartridge (HP & LX)
- Absorbent & non-absorbent surface compatibility
- Robust industrial design
- High resolution up to 600 dpi
- Max print height varies by technology:
- HP & LX: 1 printhead 12.5mm (½”) → 8 printheads 100mm (4”)
- MX: 50mm or 100mm heads; up to 400–800mm
- XR: 1 printhead 71mm (2.8”) → 8 printheads 568mm (22.4”)
- Print speeds at 300dpi: MX up to 60m/min, XR up to 67m/min, HP up to 180m/min, LX up to 240m/min
