Markoprint Integra Quadro
Have one to sell?
ConditionNew
New

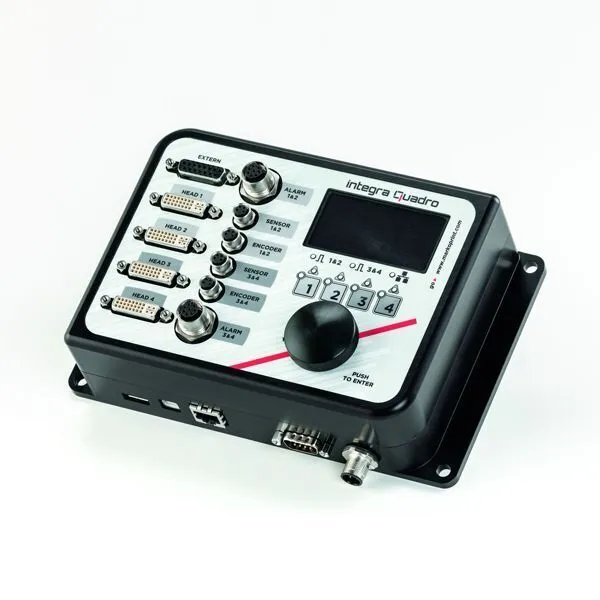

Space-Saving Control Unit for Up to 4 Inkjet Printheads
The Markoprint Integra Quadro is a compact controller with an OLED screen, designed to operate up to four printheads simultaneously. Its versatile design allows stacking for larger print heights, printing on multiple sides of a package, or running two separate production lines at once. Four print technologies are supported—HP, LX, MX, and XR—making it adaptable to almost any industrial application.
The Quadro communicates with printheads lacking built-in intelligence and visualizes print jobs and statuses for supported heads. An intuitive control panel and included iDesign software allow users to design layouts, adjust settings, and manage jobs quickly. DIN rail clips and mounting brackets make integration into control cabinets or machinery simple and efficient.
Compatible with a wide range of Markoprint printheads, the Quadro provides precise control over text, graphics, and 1D/2D barcodes. Its connectivity options—including USB, Ethernet, PLC, and web interfaces—allow seamless integration with production lines, while encoder inputs ensure accurate printing even at variable belt speeds.
TECHNICAL FEATURES
- Print with True Type fonts
- Alphanumeric text
- 1D & 2D barcodes
- Graphics & logos
- Compact design
- Print from the side or top down
- Control of up to four printheads
- DIN rail clips for easy installation
- Supports HP, LX, MX, and XR technologies
- Run up to 2 different technologies simultaneously
- Data transmission via USB stick, Ethernet, PLC, or web interface
- Encoders for variable belt speeds and downtimes
- Flex holder for different product distances
- Mounting brackets for horizontal and vertical applications
- Maximum print heights vary by technology:
- HP & LX: 1 printhead up to 12.5mm, 2 printheads up to 25mm, 3 printheads up to 37.5mm, 4 printheads up to 50mm
- MX: 50mm or 100mm printheads, up to 200–400mm
- XR: 1 printhead up to 71mm, 2 up to 142mm, 3 up to 213mm, 4 up to 284mm
- Parallel operation with standard keypad and function keys
- Networking via TCP/IP, USB, and EIA232
- Print on up to two production lines simultaneously
- Simultaneous marking of primary and secondary packaging
- New printhead for each cartridge (HP & LX)
- Supports absorbent and non-absorbent surfaces
- Robust industrial construction
- High resolution up to 600 dpi
- Print speeds at 300 dpi: MX up to 60m/min, XR up to 67m/min, HP up to 180m/min, LX up to 240m/min
