Bulk Ink Supply System for Markoprint HP Printheads

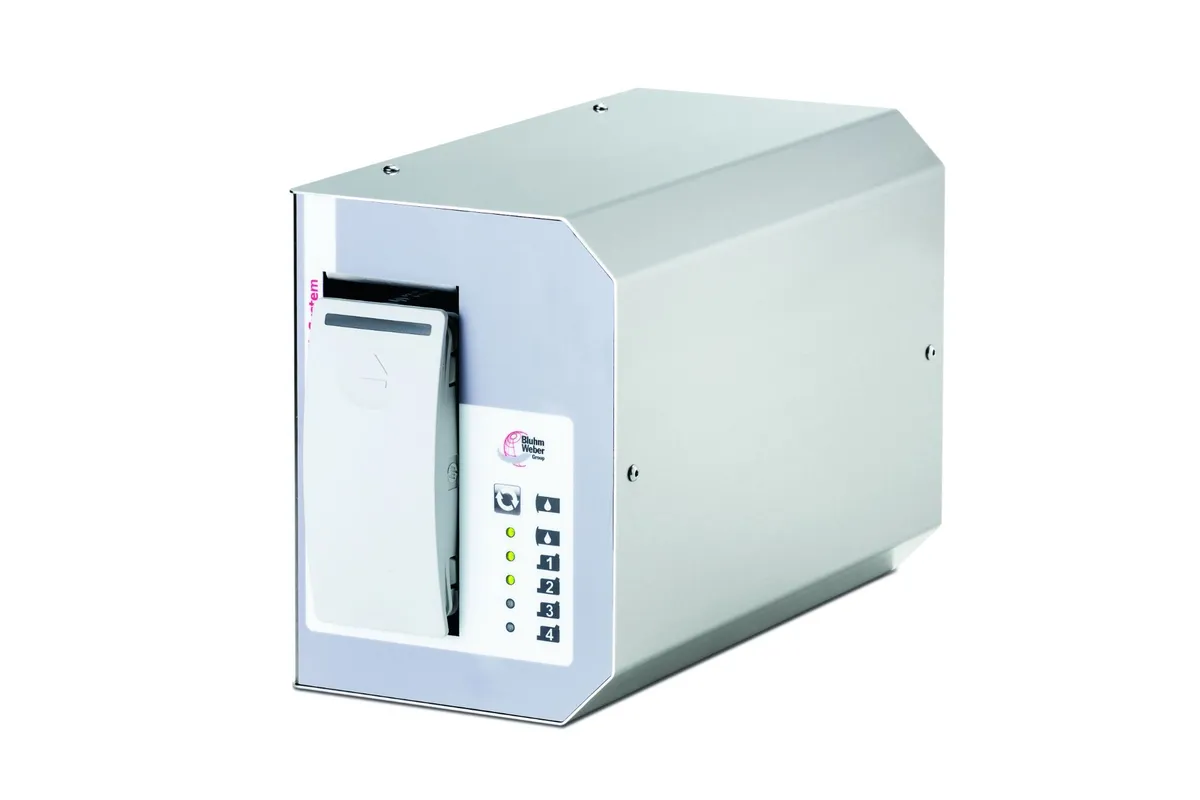

The Markoprint ZTV HP is a bulk ink delivery system designed for high-volume thermal inkjet (TIJ) applications. A 400 ml bulk cartridge continuously replenishes the 35 ml cartridge in the printhead, allowing uninterrupted printing and reducing operator intervention. The system monitors ink levels in real time and automatically prevents overfilling or mixing of inks.
One bulk tank can supply one to four printheads, and it is compatible with NonStopPrinting, Integra One, X2JET, X4JET, Quadro, and Quadro² printheads. The pressure-regulated design allows installation above, beside, or below the printheads without additional regulators.
High-resolution printing supports text, graphics, and barcodes, with print heights scaling from 12.5 mm (½ inch) for one head up to 50 mm (2 inches) for four heads. The system accepts external triggers and connects via Ethernet, USB, or PLC interfaces.
TECHNICAL FEATURES
- True Type fonts, alphanumeric text, 1D & 2D barcodes, graphics, and logos
- Compact industrial design
- 400 ml bulk ink cartridges with black or red solvent-based inks
- Prints on porous and non-porous surfaces
- Print heights from 12.5 mm to 50 mm depending on number of printheads
- Ink level monitoring and manifold design for minimal intervention
- Mounting for horizontal or vertical applications
- Encoders for variable belt speeds or production pauses
- PC-based software with Ethernet, USB, PLC, or web interface
- High-resolution printing (600 DPI)
- Print speeds up to 180 m/min at 300 DPI
